Github项目 - DensePose

Facebook 发布的 DensePose 效果确实再次令人惊艳,一如 Detectron.

[Github - DensePose]
[densepose.org]
[Paper-2018]

DensePose-RCNN 基于 Detectron 框架Caffe2.

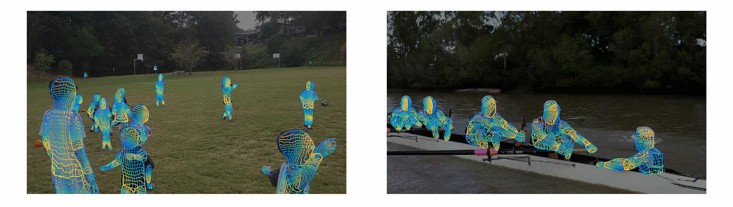

密集人体姿态估计的目标是,将RGB图片中所有人体像素点映射到人肢体的三维曲面.
如图:

论文里介绍了 DensePose-COCO 数据集,其是在 50K COCO 图片上手工标注的图片-表面(image-to-surface)对应的大规模数据集.

1. 安装

1.1 Caffe2 和 Detectron 安装

需要先安装 Caffe2 和 Detectron.

环境:
- NVIDIA GPU, Linux, Python2
- Caffe2,
- COCO API
- numpy>=1.13
- pyyaml>=3.12
- matplotlib
- opencv-python>=3.2
- setuptools
- Cython
- mock
- scipy
- h5py
- memory_profiler

注意:
- Detectron Ops 还没有 CPU 实现,当前只支持 GPU 系统.
- Detecton 在 CUDA8.0 和 cuDNN 6.0.21 上测试.

安装 Caffe2 和 Deterctron 是否成功:

# To check if Caffe2 build was successful
python2 -c 'from caffe2.python import core' 2>/dev/null && echo "Success" || echo "Failure"
# 输出:Success

# To check if Caffe2 GPU build was successful
# This must print a number > 0 in order to use Detectron
python2 -c 'from caffe2.python import workspace; print(workspace.NumCudaDevices())'
# 输出:1

1.2 DensePose 安装

  • 克隆项目:
# DENSEPOSE=/path/to/clone/densepose
git clone https://github.com/facebookresearch/densepose $DENSEPOSE
  • 安装 Python 依赖库:
sudo pip install -r $DENSEPOSE/requirements.txt
  • 设置 Python 模块,并测试 Detectron - [SpatialNarrowAsOp test]:(https://github.com/facebookresearch/DensePose/blob/master/tests/test_spatial_narrow_as_op.py):

    cd $DENSEPOSE && make

    python2 $DENSEPOSE/detectron/tests/test_spatial_narrow_as_op.py

  • 创建自定义 Ops 库,并测试自定义 Op:

    cd $DENSEPOSE && make ops

    python2 $DENSEPOSE/detectron/tests/test_zero_even_op.py



    安装成功.

1.3 DensePose Docker 安装

因为需要用到 NVIDIA 显卡,需要安装 nvidia-docker,可参考:Docker - 基于NVIDIA-Docker的Caffe-GPU环境搭建

DensePose 提供的 Dockerfile.

# Use Caffe2 image as parent image
FROM caffe2/caffe2:snapshot-py2-cuda9.0-cudnn7-ubuntu16.04

RUN mv /usr/local/caffe2 /usr/local/caffe2_build
ENV Caffe2_DIR /usr/local/caffe2_build

ENV PYTHONPATH /usr/local/caffe2_build:${PYTHONPATH}
ENV LD_LIBRARY_PATH /usr/local/caffe2_build/lib:${LD_LIBRARY_PATH}

# Clone the Detectron repository
RUN git clone https://github.com/facebookresearch/densepose /densepose

# Install Python dependencies
RUN pip install -r /densepose/requirements.txt

# Install the COCO API
RUN git clone https://github.com/cocodataset/cocoapi.git /cocoapi
WORKDIR /cocoapi/PythonAPI
RUN make install

# Go to Densepose root
WORKDIR /densepose

# Set up Python modules
RUN make

# [Optional] Build custom ops
RUN make ops
  • 创建 DensePose 镜像:
cd $DENSEPOSE/docker
sudo docker build -t densepose:c2-cuda9-cudnn7 .

运行镜像图片测试:

sudo nvidia-docker run --rm -it densepose:c2-cuda9-cudnn7 python2 detectron/tests/test_batch_permutation_op.py

1.4 下载 DensePose 数据

  • train/evaluate DensePose 数据:

    cd $DENSEPOSE/DensePoseData
    bash get_densepose_uv.sh

  • 训练数据集 - DensePose-COCO dataset:

    bash get_DensePose_COCO.sh

  • evaluation 数据:

    bash get_eval_data.sh


1.5 COCO 数据集设置

datasets/data 创建 COCO 数据集链接:

ln -s /path/to/coco $DENSEPOSE/detectron/datasets/data/coco

创建 DensePose-COCO 数据集链接:

ln -s $DENSEPOSE/DensePoseData/DensePose_COCO/densepose_coco_2014_minival.json $DENSEPOSE/detectron/datasets/data/coco/annotations/
ln -s $DENSEPOSE/DensePoseData/DensePose_COCO/densepose_coco_2014_train.json $DENSEPOSE/detectron/datasets/data/coco/annotations/
ln -s $DENSEPOSE/DensePoseData/DensePose_COCO/densepose_coco_2014_valminusminival.json $DENSEPOSE/detectron/datasets/data/coco/annotations/

本地的 COCO 数据集 /path/to/coco 的组织形式应该类似于:

coco
|_ coco_train2014
|  |_ <im-1-name>.jpg
|  |_ ...
|  |_ <im-N-name>.jpg
|_ coco_val2014
|_ ...
|_ annotations
   |_ instances_train2014.json
   |_ ...

2. DensePose 的测试与训练

[DensePose Model Zoo]

2.1 利用 DensePose 预训练模型测试图片

类似于 Detectron.

预训练模型:end-to-end trained DensePose-RCNN model with a ResNet-101-FPN backbone.

测试单张图片:

python2 tools/infer_simple.py \
    --cfg configs/DensePose_ResNet101_FPN_s1x-e2e.yaml \
    --output-dir DensePoseData/infer_out/ \
    --image-ext jpg \
    --wts https://s3.amazonaws.com/densepose/DensePose_ResNet101_FPN_s1x-e2e.pkl \
    DensePoseData/demo_data/demo_im.jpg
  • --wts - 指定的模型 URL,自动下载模型
  • --output-dir - 输出的可视化结果保存路径,包括三个文件,.jpg.pdf_INDS.png_IUV.png.

输出的两张 png 图片的可视化,可以参考 - DensePose-RCNN-Visualize-Results.ipynb

import numpy
import cv2
import matplotlib.pyplot as plt
import numpy as np

im  = cv2.imread('../DensePoseData/demo_data/demo_im.jpg')
IUV = cv2.imread('../DensePoseData/infer_out/demo_im_IUV.png')
INDS = cv2.imread('../DensePoseData/infer_out/demo_im_INDS.png',  0)

# I, U 和 V images 可视化
fig = plt.figure(figsize=[15,15])
plt.imshow(   np.hstack((IUV[:,:,0]/24. ,IUV[:,:,1]/256. ,IUV[:,:,2]/256.))  )
plt.title('I, U and V images.')
plt.axis('off') ; plt.show()

# UV 场的等值线可视化
fig = plt.figure(figsize=[12,12])
plt.imshow( im[:,:,::-1] )
plt.contour( IUV[:,:,1]/256.,10, linewidths = 1 )
plt.contour( IUV[:,:,2]/256.,10, linewidths = 1 )
plt.axis('off') ; plt.show()

# 人体前景FG mask 可视化
fig = plt.figure(figsize=[12,12])
plt.imshow( im[:,:,::-1] )
plt.contour( INDS, linewidths = 4 )
plt.axis('off') ; plt.show()

依次输出:

2.2 利用 DensePose 预训练模型在测试数据集上

采用单张 GPU 测试,在 coco_2014_minval 测试数据集上:

python2 tools/test_net.py \
    --cfg configs/DensePose_ResNet101_FPN_s1x-e2e.yaml \
    TEST.WEIGHTS https://s3.amazonaws.com/densepose/DensePose_ResNet101_FPN_s1x-e2e.pkl \
    NUM_GPUS 1

2.3 DensePose 模型训练

在 DensePose-COCO 数据集上进行模型训练.
DensePose 提供的预训练模型是采用 8 GPUs 进行的.
类似于 Detectron,DensePose 也采用线性缩放来适应不同的学习策略.
参考论文 - Accurate, Large Minibatch SGD: Training ImageNet in 1 Hour

基于 ResNet-50-FPN backbone 的 DensePose-RCNN 训练:

python2 tools/train_net.py \
    --cfg configs/DensePose_ResNet50_FPN_single_GPU.yaml \
    OUTPUT_DIR /tmp/detectron-output
